2000 Series Deadbolt
2000 Series Deadbolt

200 SERIES

Part of the Dorex Signature collection, this quality versatile deadbolt is ideal for residential and light-duty applications.

Brand:
Brands
Categories: , Tag:

Features

  • Conforms to ANSI/BHMA Grade 3
  • 20 minute fire-rating available with listed fire-can*
  • For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
  • Kit for doors 21⁄4″ (57 mm) thick available
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 or 70 mm) backset
  • Brass deadbolt with security pin, 1″ (25.4 mm) throw
  • Universal mortise or 4-way faceplate
  • Free-spinning cylinder collar for enhanced security
  • 5-pin brass cylinder in steel housing, Weiser keyway with 2 keys

Full keying services available. Other common and high security keyways available.

(*) Fire-can must be ordered in conjunction with deadbolt.

Functions

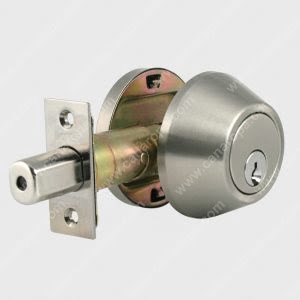

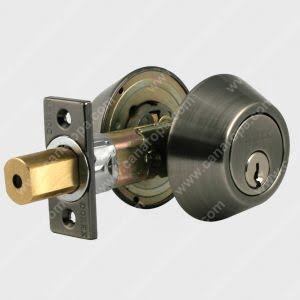

51Single cylinder with thumbturn keyed function

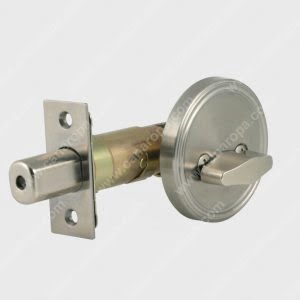

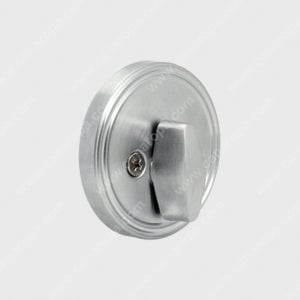

55One sided, thumbturn only
57One sided, thumbturn with exterior plate
60Double cylinder keyed function

FINISHES

C3
POLISHED BRASS
C5
ANTIQUE BRASS
C10B
OIL RUBBED BRONZE
C11P
ANTIQUE BRONZE
C15
SATIN NICKEL
C15A
ANTIQUE NICKEL
C19
MATTE BLACK
C26
POLISHED CHROME
C26D
SATIN CHROME
C32D
SATIN STAINLESS STEEL
V3
ENDURANCE / LIFETIME
C53
ANTIQUE BRASS POLISHED BRASS

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page


download
Signature – 01.285

Instructions

download200 SERIES – Installation Instructions
download200 SERIES – Installation Instructions (Function 55)
download200 SERIES – Installation Instructions (Function 57)

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
