<strong>1400 SERIES</strong>

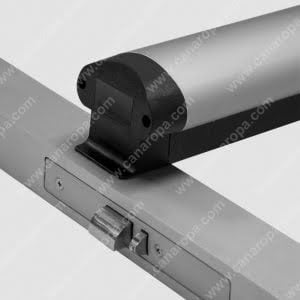

1400 Exit Device
1400 Exit Device

1400 SERIES

The 1400 series mortise exit device’s contemporary design complements today’s modern architectural aesthetic. Ideal for narrow or wide stile aluminum door applications with moderate traffic.

Categories: , , Tag:

FEATURES

  • cUL listed, panic hardware
  • 1-Year warranty
  • For doors 13⁄4″ (44.5 mm) thick, 36″ or 42″ (914 mm or 1067 mm) wide
  • Push-pad type:
    » Rim model (handed, reversible)
    » Concealed vertical rod model (non-handed)
  • Extruded, lightly curved aluminum push bar
  • 11⁄8″ (28.6 mm) backset (Rim model)
  • Hex key dogging standard
  • Deadlatch mortise lock¹ and anodized aluminum faceplate included (Rim model)
  • Spindle extensions for thicker doors available, sold separately

(1) Mortise cylinder and escutcheon not included, sold separately

Models

1400PR36Panic rim exit device, 36″ (914 mm) door, handed
1400PR42Panic rim exit device, 42″ (1067 mm) door, handed
1400PV36Panic concealed vertical rod exit device, 36 x 84″ (914 x 2134 mm), non-handed

Finish

C20D
DURANODIC
C28
ALUMINUM

Approximate finish simulation, for reference only

Trims

1400KVE
1400KVE
Cylinder Escutcheon Trim

Documentation

Product Page

download1400 – 02.110

Instructions

download1400PR – Installation Instructions
download1400PV – Installation Instructions

Templates

download1400PR – Template
download1400PV – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
