1901 SERIES
GRADE 1

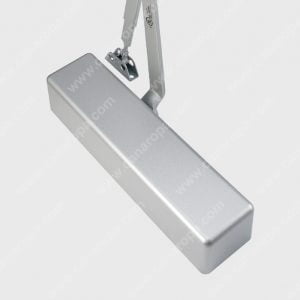

The DOREX 1901 is a versatile, power adjustable door closer designed and certified for heavy traffic commercial applications. The 1901 combines flexibility and durability into an ideal package for commercial, and multi-unit projects requiring a heavy-duty, reliable door closer.



Brand:
Brands
Categories: , , , , Tag:

Features

  • For high traffic applications
  • Certified ANSI/BHMA A156.4, Grade 1
  • cULus listed, 3hr fire-rating
  • Meets ADA requirements
  • 10-Year limited warranty
  • Adjustable power size 1–6 (preset 3)
  • Adjustable for barrier free operation ADA Compliant
  • Non-handed
  • Cast aluminum body
  • Hydraulic rack & pinion mechanism
  • Non-gumming, non-freezing hydraulic fluid
  • Operating range of -35º to 49º C (-31º to 120º F)
  • 180° maximum door opening
  • Adjustable sweep and latching speeds
  • Adjustable cushioning backcheck
  • Delayed action model available
  • Tri-pack for regular, top jamb or parallel arm installations
  • Sex-nut through bolts included
  • Full body plastic cover included
  • Various door closer arms available
  • Drop plates available
  • Industry common hole pattern, can retro-fit other popular door closers

Models

1901BCAdjustable power door closer, 1-6 ADA Compliant
1901BCDAAdjustable power door closer, 1-6, delayed action ADA Compliant
1901HCAdjustable power door closer, 1-6 ADA Compliant
1901NHCAdjustable power door closer, 1-6 ADA Compliant

Finishes

AL
ALUMINUM, PAINTED
BP
BRASS, PLATED
DU
DARK BRONZE, PAINTED
MB
MATTE BLACK, PAINTED

Other finishes available
Approximate finish simulation, for reference only

Accessories

1901-CSA

Heavy-duty cushion stop arm, hold open

1901-CSANHO

Heavy-duty cushion stop arm, no hold open


1901-SCSANHO

Heavy-duty cushion spring stop arm, no hold open


1901-ARMF

Regular arm with adjustable friction hold open


SA1901
Sliding arm with optional hold open

1901-DP

For regular arm installations

1901-DPTJ

For top jamb installations

1901-DPTJN

Narrow plate for top jamb installations

1901-DPPA

For parallel arm installations

SNBS1420

Steel sex nut & thru-bolt kit (4) for doors 1 3⁄4″
(44.5 mm) thick

Documentation

Product Page

download1901 – 03.010
downloadBHMA Products Guide

Instructions

download1901 – Installation Instructions
download1901-CSA, 1901-CSANHO – Installation Instructions
download1901-ARMF – Installation Instructions
download1901 – With slide track arm (SA1901) – Installation Instructions
download1901-DP – Installation Instructions

Templates

download1901 – Regular Arm / Parallel Arm
