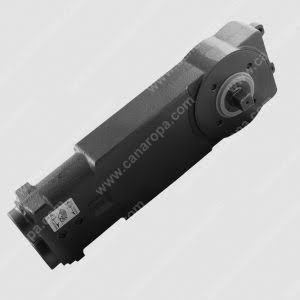

Dorex 30 Overhead Transom Door Closer
Dorex 30 Overhead Transom Door Closer

30 SERIES
GRADE 1

Heavy duty, overhead concealed door closer for moderate commercial traffic applications.

Brand:
Brands
Categories: , , Tags: , , ,

Features

  • For moderate commeecial traffic applications
  • EN1154 compliant for 500,000 test cycles
  • 5-Year limited warranty
  • For Single or double acting, centre hung applications
  • For wood, metal or aluminum frame doors over 1 3⁄4″ (44.5 mm) thick
  • Suitable for frame-less tempered glass doors up to 1⁄2″ (13 mm) thick (patch fittings sold separately)
  • Compatible/interchangeable with Jackson-type door closers
  • Light, regular and heavy duty models available
  • Non-handed
  • Compact steel body fits 1 3⁄4 x 4″ (44.5 x 101.6 mm) header sections
  • Hydraulic, dual spring operation
  • Non-gumming, non-freezing hydraulic fluid
  • 90° and 105° maximum opening models available
  • Adjustable sweep and latching speeds
  • Adjustable vertical clearance to accomodate threshholds
  • Mounting hardware included
  • Mechanical hold open available

Accessories

Type-S side loading arm 3010S
Type-S Side Loading Arm*
Type A, end loading arm 3010EL
Type-A End Loading Arm**
Anchor set 3010FS
Anchor Set
Offset Arm and channel 3010OC
Offset arm and channel
Bottom Pivot3010DP
Floor Pivot (*)
Bottom Pivot3020DP
Floor Pivot (**)

(*) Included with model 30
(**) Included with model 31

MODELS

30 MODEL

  • 1⁄2″ (12.7 mm) spindle
  • Includes side loading arm (#3010S) and adjustable floor mounted pivot set (#3020DP)

31 MODEL

  • 11⁄16″ (17 mm) spindle
  • Includes end loading arm (#3010EL) and adjustable floor mounted pivot set (#3020DP)

31B MODEL

  • 11⁄16″ (17 mm) spindle
  • Body only model
  • Recommended for frame less tempered glass doors with appropriate glass patch fittings (sold separately

Documentation

Product Page

downloadDorex 30 – 03.052

Instructions

downloadDorex 30 – Installation Instructions
download3010OC – Offset Arm Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
