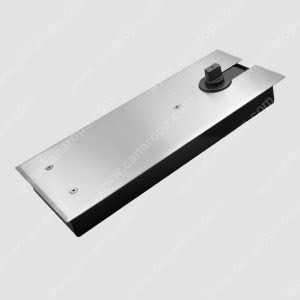

Dorex 40 - Concealed Floor Door Closer

40 SERIES

Concealed floor door closer for moderate commercial traffic applications.

Brand:
Brands
Categories: , , Tags: , Brand:

Features

  • For moderate commercial traffic applications
  • 5-Year limited warranty
  • For single or double acting, centre hung applications
  • Suitable for wood, metal or aluminum doors over 13⁄4″ (44.5mm) thick
  • Suitable for frame-less tempered glass doors up to 1⁄2″ (13 mm) thick (patch fittings sold separately)
  • Compatible / interchangeable with Jackson-type door closers
  • Regular and heavy duty models available
  • Non-handed
  • Compact cast steel body fits thin slab floors; 1 5⁄8″ (41.3 mm) deep
  • Hydraulic, dual spring operation
  • Non-gumming, non-freezing hydraulic fluid
  • Operating range of -15º to 40º C (5º to 104º F)
  • 90°, 105° or 130° maximum opening models available
  • Adjustable sweep and latching speeds
  • Vertical, horizontal and lateral adjustments possible after installation
  • Cement housing and mounting hardware included
  • Cover plate included, satin stainless steel finish
  • 19⁄32″ (15 mm) spindle
  • Heavy duty arm and top pivot included
  • Mechanical hold open available
  • Body-only model with removable pivot (#40B) available
  • Various removable pivots available

Accessories

40CP Floor Closer Cover
30CPC32
Stainless Steel Cover
40ESP-3, 15mm pivot with 3mm extension 40ESP-3
Pivot with 3 mm extension
40ESP-5, 15mm pivot with 5mm extension40ESP-5
Pivot with 5 mm extension
40ESP-10, 15mm pivot with 10mm extension40ESP-10
Pivot with 10 mm extension
40ESP-15, 15mm pivot with 15mm extension40ESP-15
Pivot with 15 mm extension

Model

40B Model

  • Body only with removable spindle
  •  19⁄32″ (15 mm) removable spindle; others available
  • Recommended model for frame less glass doors with appropriate patch fittings (sold separately)

Documentation

Product Page

downloadDorex 40 – 03.054

Instructions

downloadDorex 40 – Installation Instructions
