441 SERIES
GRADE 1

The DOREX 441 is a heavy-duty power adjustable door closer designed for high traffic applications. With a cast-iron body and robust arms, the DOREX 441 can handle heavy use while providing a clean architectural appearance.



Brand:
Brands
Categories: , , Tag:

FEATURES

  • For demanding, very high traffic applications
  • Conforms to ANSI/BHMA A156.4 Grade 1
  • cULus listed, 3hr fire-rating
  • Meets ADA requirements
  • 10 Year limited warranty
  • Adjustable power size 1–6 (preset 3)
  • Adjustable for barrier free operation ADA Compliant
  • Non-handed
  • Heavy-duty, precision cast iron body
  • Hydraulic rack & pinion mechanism
  • Non-gumming, non-freezing hydraulic fluid
  • 120° maximum opening
  • 180° maximum opening with parallel arm
  • Adjustable sweep and latching speeds
  • Adjustable cushioning backcheck
  • Full body plastic cover included
  • Tri-pack: regular, top jamb or parallel arm mount
  • Various door closer arms available
  • Drop plates available

Models

441 BCPower Adjustable Door Closer, 1-6
441 BCCPower Adjustable Door Closer, 1-6, with cushion stop arm no hold open
441 BCHPower Adjustable Door Closer, 1-6, with cushion stop arm, hold open

Finishes

AL
ALUMINUM, PAINTED
DU
DARK BRONZE, PAINTED

Other finishes available
Approximate finish simulation, for reference only

Accessories


ARM441C Heavy duty cushion stop arm, no hold open. Included with 441BCC

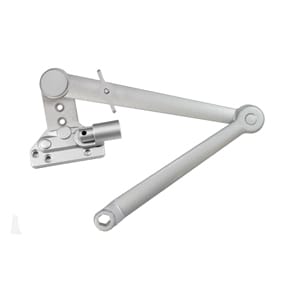

ARM441H Heavy duty cushion stop arm, hold open. Not for use on fire rated doors. Included with 441BCH

ARM441E Heavy Parallel arm for extra-duty applications

ARM441S Heavy duty spring stop arm, no hold open

ARM441F Adjustable friction hold open arm, for standard, top jamb or parallel arm installation. Not for use on fire rated doors

441LR Long forearm link for reveal greater than 3″ (76) up to 5″ (127 mm)
441ELR Extra long forearm link for reveals up to 5–9″ (127–228 mm)

DP441-18 For regular arm installations where the door top rail height is insufficient for direct mounting

DP441-18G For top jamb installations where low ceiling clearance prevents direct mounting

DP441-18PA For parallel arm installations where the door top rail height is insufficient for direct mounting

DP441-18TJ For top jamb installations where the door frame header height is insufficient for direct mounting

SNB1420 Sex nut & thru-bolt kit (4) for doors 1 3⁄4″ (44.5 mm) thick

DOCUMENTATION

Product Page

download441 – 03.006

Instructions

download441BC – Installation Instructions
downloadARM441C CSA NHO – Installation Instructions
downloadARM441S CSSA NHO – Installation Instructions
downloadARM441F FRICTION – Installation Instructions
download441BCC/BCH – Installation Instructions
downloadARM441H CSA NHO – Installation Instructions
downloadARM441E EXTRA DUTY – Installation Instructions
downloadDP441-18/18G/18TJ/18PA DROP PLATES – Installation Instructions
download441- WITH SLIDE TRACK ARM (SA441) – Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
