8500 SERIES
GRADE 2

The Dorex 8500 series exit device offers a sophisticated contoured design and is available with a variety of exterior trim options. This exit device is ideal for moderate use wood or hollow metal door applications.



Brand:
Brands
Category: Tags: , ,

FEATURES

  • Conforms to ANSI/BHMA A156.3, Grade 2
  • cULus listed, Panic Hardware
  • cULus listed, 11⁄2 hr Fire Exit hardware
  • 1-Year warranty
  • For wood or hollow metal doors 30–48″ (711-1219 mm) wide¹
  • Push-pad type:
    » Rim models (non-handed)
    » Surface vertical rod models (non-handed)
  • Field sizeable
  • Stainless steel latchbolt, 3/4″ (19 mm) throw
  • Stainless steel springs
  • Hex key dogging standard (non-fire rated models only)
  • Wide variety of exterior trims and accessories available

(1) Maximum door size may vary by model, see available models.

MODELS

8500Panic rim exit device, 30–38″ (762–965 mm)
8500-48Panic rim exit device, 38–48″ (965–1220 mm)

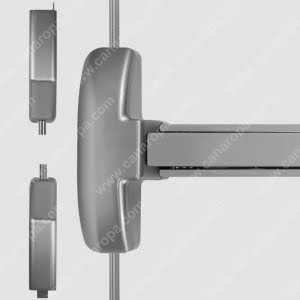

8500VPanic surface vertical rod exit device, 30–38 x 96″ (762–965 x 2438 mm)
8500V-48Panic surface vertical rod exit device, 38–48 x 96″ (965–1220 x 2438 mm)
8500FFire rim exit device, 30–36 x 84″ (762–914 x 2134 mm)
8500VFFire surface vertical rod exit device, 30–36 x 84″ (762–914 x 2134 mm)

FINISHES

C3
POLISH BRASS, PLATED
C28
ALUMINUM
C32D
SATIN STAINLESS STEEL

Other finishes available
Approximate finish simulation, for reference only

Trims & Accessories

8503 Pull Trim - Passage
8503
Thumb-latch Pull,
Passage
8504 Pull Trim - Night Latch
8504
Night Latch Pull
8505 Pull Trim - Entrance
8505
Thumb-latch Pull,
Entrance
8500FC Lever Trim
8500FC
 Lever Trim,
Curved Return
8500FH Lever Trim
8500FH
 Lever Trim,
Straight Return
8500FS Lever Trim
8500FS
Lever Trim,
Straight
8500B Knob Trim
8500B
Knob Trim
8000DT Pull Trim
8000DT
 Raised Lip Pull
8000NL Night Latch
8500NL
Raised Lip Pull,
Night Latch
8000NLS Night Latch Single
8500NLS
 Single Lip Pull,
Night Latch

Documentation

Product Page

download8500/F – 02.030
download8500V/VF – 02.032
downloadTrims & Accessories – 02.034

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
