851 SERIES
GRADE 1

This slimline adjustable door closer offers a variety of features for high traffic institutional applications. The 851’s narrow profile and covers provide a clean architectural appearance.



Brand:
Brands
Categories: , , , Tag:

Features

  • Surface door closer for high traffic applications
  • Certified ANSI/BHMA A156.4, Grade 1
  • cULus listed, 3hr fire-rating
  • Meets ADA requirements
  • 10-Year limited warranty
  • Adjustable power size 1-6 (preset 3)
  • Adjustable for barrier free operation ADA Compliant
  • Non-handed
  • Cast aluminum housing
  • Hydraulic rack & pinion mechanism
  • Non-gumming, non-freezing hydraulic fluid
  • 180° maximum opening
  • Adjustable sweep and latching speeds
  • Adjustable cushioning backcheck
  • Narrow plastic cover and cap included
  • Tri-Pack: regular, top-jamb or parallel arm mounting
  • Delayed action model available

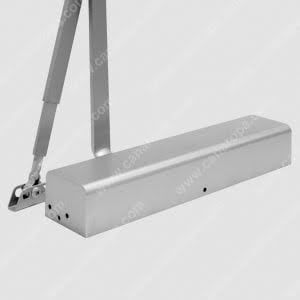

  • Full body plastic cover avaiable
  • Various door closer arms available

Models

851BCDoor closer, size 1-6, backcheck ADA Compliant
851BCDADoor closer, size 1-6, backcheck, with delayed action ADA Compliant

Finishes

AL
ALUMINUM, PAINTED

Other finishes available
Approximate finish simulation, for reference only

ACCESSORIES

Heavy Duty Cushion Stop Arm, Hold Open
CSA851
Heavy Duty Cushion Stop Arm, Hold Open
Heavy Duty Cushion Stop Arm, No Hold Open
CSANHO851
Heavy Duty Cushion Stop Arm, No Hold Open
Heavy Duty Cushion Spring Stop Arm, No Hold OpenSCSANHO851
Heavy Duty Cushion Spring Stop Arm, No Hold Open

851-ARMF
Regular arm with adjustable friction hold open

FULLCOVER851
Full body plastic cover.

851-DP
For regular installations where the door top rail height is insufficient

851-DPTJ
For top jamb installations where the door frame header height is insufficient

851-DPPA
For parallel arm installations where the door top rail height is insufficient
SNBS1420

Steel sex nut & thru-bolt kit (4) for doors 1 3⁄4″
(44.5 mm) thick

Documentation

Product Page

download851 – 03.030
downloadBHMA Products Guide

Instructions

download851 – Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
