9500FL Fire Exit Device

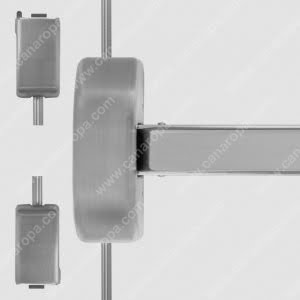

9500 Surface Vertical Rod Exit Device
9500FL Fire Exit Device
9500 Surface Vertical Rod Exit Device

9500 SERIES
GRADE 1

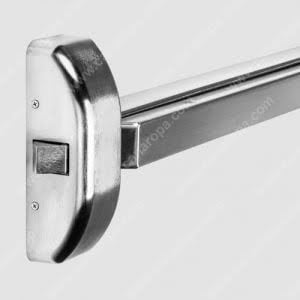

The DOREX 9500 is a heavy duty exit device with contemporary style and exceptional performance for high traffic applications.



Brand:
Brands
Categories: , , , Tags: , ,

FEATURES

  • Certified ANSI/BHMA A156.3, Grade 1
  • cULus listed, Panic Hardware
  • cULus listed, 3 hr Fire Exit hardware
  • 10 year limited warranty
  • For wood or hollow metal doors 30–48″ (762–1219 mm) wide¹
  • Push-pad type:
    » Rim (non-handed)
    » Surface vertical rod (handed, reversible)
  • Field sizeable
  • Stainless steel latchbolt, 3⁄4″ (19 mm) throw
  • Stainless steel springs
  • Hex key dogging standard (non-fire rated models only)
    » Cylinder dogging available
  • “Request to exit” option available
  • Wide variety of exterior trims and accessories available
  • Mortise and Concealed Vertical Rod models available²

(1) Maximum door size may vary by model, see available models.
(2) Please contact for Mortise or Concealed Vertical Rod model information

MODELS

9500PRPanic rim exit device, non-handed
9500PVPanic surface vertical rod exit device, handed
9500FRFire rim exit device (3Hr), non-handed
9500FVFire surface vertical rod exit device (3Hr), handed
9500FLFire surface vertical rod exit device (3Hr), less bottom rod, handed

Please contact for Mortise or Concealed Vertical Rod model information.

FINISHES

28
ALUMINUM
32D
SATIN STAINLESS STEEL

Other finishes available
Approximate finish simulation, for reference only

Trims & Accessories

9500KD Cylinder Dogging Kit
9500KD
Cylinder Dogging Kit
9500KA Alarm Kit
9500KA
Alarm Kit
9500TT03 Pull Trim
9500TT03
Thumb-latch Pull,
Passage
9500TT04 Night Latch Pull
9500TT04
Night Latch Pull
9500TT05 Pull Trim
9500TT05
Thumb-latch Pull,
Entry
9500TL Lever Trim
9500TL
Lever Trim
9500TK Knob Trim
9500TK
Knob Trim
9500TE Escutcheon Lever Trim
9500TE
Escutcheon Lever Trim

9500TED
Escutcheon Lever Trim
9500TEH Heavy Dudty Escutcheon Lever Trim
9500TEH
Escutcheon Lever Trim,
Heavy Duty
9500TPEP Blank Plate
9500TPEP
Blank Plate
9500TPDT Pull Plate
9500TPDT
Raised Lip Pull
9500TPNL Nigh Latch Pull
9500TPNL
Raised Lip Pull,
Night Latch

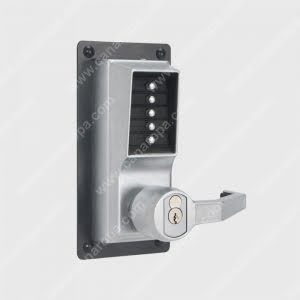

TB20 BR-26D
Mechanical pushbutton trim kit

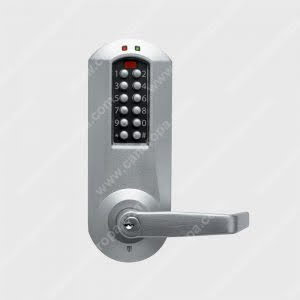

TB 50XS-26D
Electronic pushbutton trim kit

Documentation

Product Page

download9500PR/FR – 02.020
download9500PV/FV/FL – 02.022
download
9500EL – 02.028
downloadPushbutton Trim Kits – 02.029
downloadTrims & Accessories – 02.024
downloadBHMA Products Guide

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
