ARCO

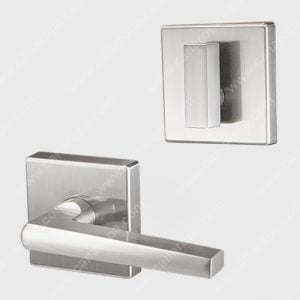

Part of the Dorex Tecnica Design collection, this classic entry handleset for residential applications.

Brand:
Brands
Categories: , , Tags: ,

Features

  • Zinc die-cast exterior trim
  • For doors 13⁄4″ – 2 1⁄4″ (44.5 – 57 mm) thick
  • Non-handed (reversible)
  • 4-Way latch (Mortise or Drive-in installation)
  • Adjustable backset: 2 3⁄8″ – 2 3⁄4″ (60 – 70 mm)
  • Zinc spring latch bolt, 1⁄2″ (12.7 mm) throw
  • Steel deadbolt, 1″ (25.4 mm) throw
  • Linea interior lever trim with square rose
  • Other interior trims available (sold separately)
  • 5-pin brass cylinder
  • Weiser keyway with 2 keys

Finishes

C15
SATIN NICKEL
C19
MATTE BLACK
C26D
SATIN CHROME
C26
POLISHED CHROME

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page

downloadTecnica Design Collection – 01.210
downloadTecnica Design (Entry Handlesets) – 01.216

Installation Instructions

downloadArco – Installation Instructions

Templates

downloadArco – Templates
