FEATURES
- Conforms to ANSI/BHMA A156.26 Grade 1
- 10 Year limited warranty

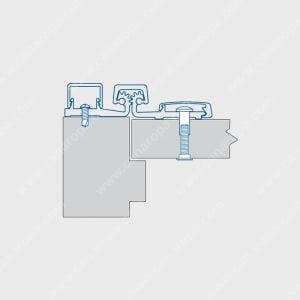

- Extruded 6063 aluminum alloy continuous geared hinges
- with self-lubricating thrust bearings
- Full surface, heavy duty
- 1⁄16” (1.6 mm) door inset
- For doors 13⁄4 – 21⁄4″ (44.5 – 57 mm) thick, up to 48″ (1219 mm) wide
- For narrow-faced door frames at least 11⁄2” (38 mm) when aligned with door gap; 7⁄8” (22 mm) when offset
- 400 lbs (182 kg) door weight maximum
- Doors heavier than 200 lbs (90.7 kg) require door and frame reinforcement
- Mounting hardware included for metal door and frame
- » #12-24 x 5⁄8” (16 mm) self-drilling/tapping TEK screws (undercut)
» 1⁄4″-20 Sex bolt and machine screws for doors up to 21⁄4″ (57 mm) thick
