Citadelle Deadbolt
Citadelle Deadbolt

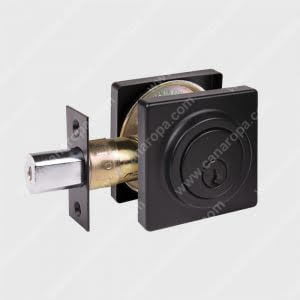

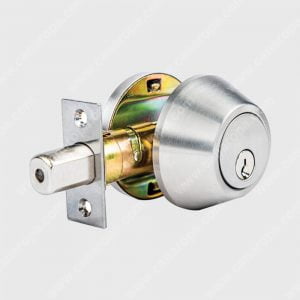

CITADELLE

Deadbolt lock for residential construction or renovation projects.

Categories: , Tag:

Features

  • For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 or 70 mm) backset
  • Deadbolt with security pin, 1″ (25.4 mm) throw
  • 4-way faceplate, fixed mortise faceplate available
  • 5-pin cylinder in steel housing, Weiser keyway with 2 keys

Functions

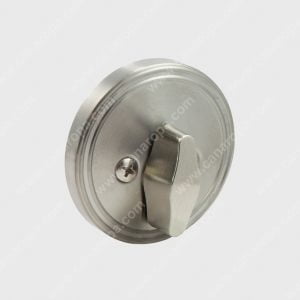

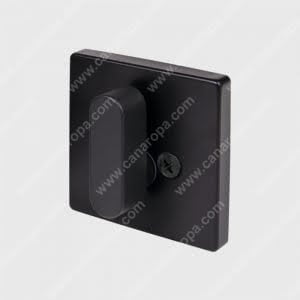

51Single cylinder with thumbturn

FINISHES

3
POLISHED BRASS
11P
ANTIQUE BRONZE
15
SATIN NICKEL
26D
SATIN CHROME
19
MATTE BLACK
32D
SATIN STAINLESS STEEL
53
ANTIQUE BRASS POLISHED BRASS
5
ANTIQUE BRASS

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page

downloadBuilder Series – 01.290

Instructions

downloadBuilder Series – Installation Instructions (Round)
downloadBuilder Series – Installation Instructions (Square)

Templates & Door Preparations

downloadBuilder Series – Citadelle – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
