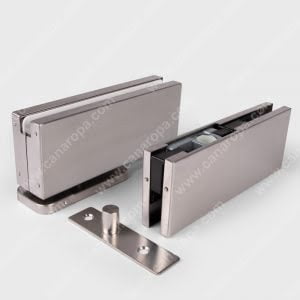

COMPLETE GLASS
DOOR CLOSER KIT

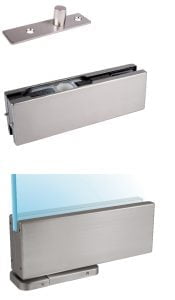

Includes:

  • Top Frame Pivot
  • Top Door Patch Fitting Pivot
  • Hydraulic Patch Fitting Door Closer
Categories: , ,

FEATURES

  • Includes all parts required for a single glass door*
  • For interior use in low to moderate traffic applications
  • For tempered glass panels 5⁄16 – 1⁄2″ (8-12 mm) thick
Top Frame Pivot

  • Solid steel
  • Surface mounted

Top Door Patch Fitting Pivot

  • Machined aluminum body
  • Metal covers

Hydraulic Patch Fitting Door Closer

  • Concealed in patch fitting
  • Single or double acting
  • +/- 150° maximum opening
  • Adjustable closing and latching speed
  • Floor surface mounted
  • Steel, stainless steel or aluminum covers
  • Available with 90° hold open

* Door pull or lock not included

FINISHES AND KITS

628
CLEAR ANODIZED ALUMINUM
PF100DC-SD3-628
(No hold open)

PF100DCHO-SD3-628
(90° hold open)
629
POLISHED
STAINLESS STEEL
PF100DCHO-SD3-629
(90° hold open)
630
SATIN
STAINLESS STEEL
PF100DC-SD3-630
(No hold open)

PF100DCHO-SD3-630
(90° hold open)
19
MATTE BLACK
COATED STEEL
PF100DC-SD3-19
(No hold open)

PF100DCHO-SD3-19
(90° hold open)
Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Focus Catalogues

downloadGlass Door Hardware Guide
downloadGlass Door Configurations

Installation Instructions

downloadPF100DC / PF100DCHO – Installation Instructions
downloadPF121 – Installation Instructions
downloadPF120TP1 – Installation Instructions
downloadPF-INST-PADS – Adhesive pads – Installation Instructions
