CX-ED1579L
GRADE 1

The CX-ED1579L heavy-duty electric strike for commercial cylindrical and mortise door locks is a true “all-in-one” solution. Offering the best possible features available: Grade 1 performance, UL fire and security ratings, latch monitoring, five different faceplates, field selectable voltage and fail-safe / fail-secure modes.



Please contact or visit www.camdencontrols.com
for product and warranty details.

Brand:
Brands
Categories: , , , Tag:

FEATURES

  • Fire Rated: UL10C/CAN4-S104, 3Hrs. (Fail-Secure only)
  • Security Rating: UL1034/294
  • Heavy-duty (Grade 1 – 1,500,000 cycles)
  • For use with centerline mortise or cylindrical door locks
  • For use on wood, hollow metal or aluminum door frames
  • For latches with 5⁄8″ to  3⁄4″ (16–19 mm) throw / projection
  • Non-handed, reversible
  • Stainless steel strike body
  • Field selectable Fail-Safe (Unlocked) / Fail-Secure (Locked) modes
  • Field selectable 12/24V AC/DC voltage
  • Built-in latch monitoring
  • Easy-fit connectors for power and monitor wiring

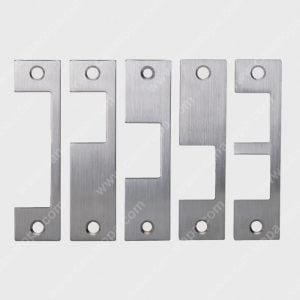

  • Includes five (5) stainless steel faceplates

Hollow Metal

Aluminum

Wood

Cylindrical Door Lock

Centerline Mortise Lock

DOCUMENTATION

Product Page (Specialties)

downloadA.300

For more information visit: www.camdencontrols.com
