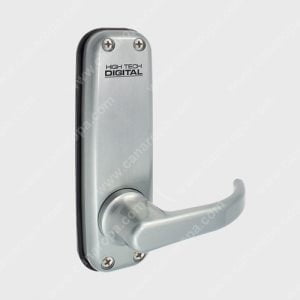

DDL 1150

The DDL 1150 is a fully mechanical, push-button combination door lever for use on moderate traffic applications.

Categories: ,

FEATURES

  • The original DDL, made in Japan
  • 1 Year limited warranty
  • For interior doors 13⁄8 to 2″ (35 to 51 mm) thick
  • Kit available for doors 21⁄4″ (57 mm) thick
  • Handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″ (60 mm) backset available
  • Stainless steel deadlatch with 1⁄2″ (12.7 mm) throw
  • Fully mechanical, no batteries
  • Stainless steel push-buttons
  • Easy combination changes
  • Zinc-alloy case with rubber escutcheon
  • Fits 21⁄8″ (54 mm) door bore without trim plate

Recommended for interior use only

FINISHES

SC
SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadDDL 1150 Series 01.420

Installation Instructions

download1150 Installation Instructions

Templates & Door Preparations

download1150 Template
