<strong>DGS-BA32V</strong></br> AUTOMATIC DOOR BOTTOMS
NEW

DGS-BA32V
AUTOMATIC DOOR BOTTOMS



Brand:
Brands
Categories: , , Brand:

FEATURES

  • cULus listed (UL10C)
    – Wood fire door: 20 min
    – Composite fire door: 90 min
    – Metal fire door: 3 hrs

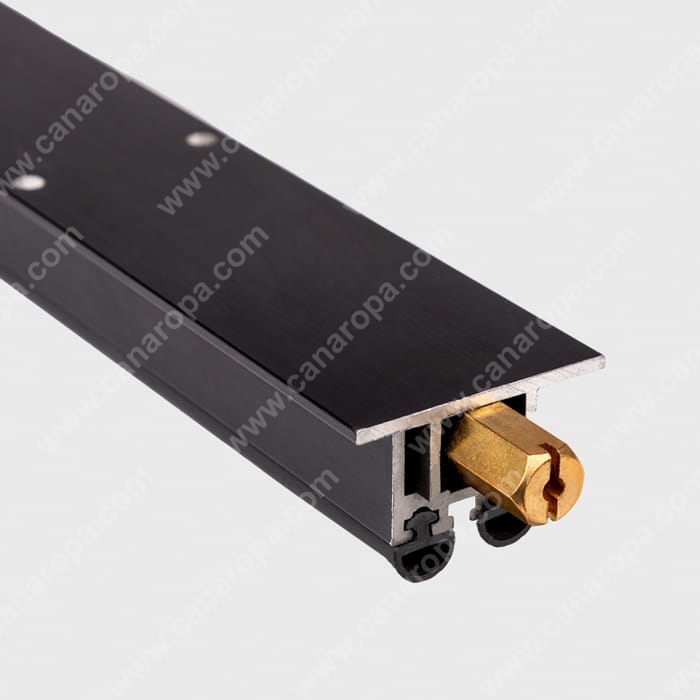

  • Automatic door bottom for hollow metal doors with inverted channel
  • Door seal will lower automatically as the door closes
  • Extruded aluminum rail
  • Non handed
  • Maximum drop: 1⁄2″ (12.7 mm), recommended gap is 3⁄8  (9.5 mm)
  • Door thickness: 13⁄4″ (44.5 mm)
  • Channel depth: 3⁄4″ (19    mm)
  • Dual vinyl gaskets provide an excellent general-purpose seal
  • Door drop can accommodate even and uneven surfaces
  • Can be trimmed
  • Does not include end-caps, requires a hole for the plunger to extend through
    the hinge side of the door edge
  • Includes screws for metal doors

DOCUMENTATION

Product Page

download06.252
downloadDGS Flyer

Installation Instructions

downloadDGS-BA32V – Installation Instructions
