DMDBL SERIES
GRADE 1

Heavy-duty mortised deadbolt door lock for enhanced security applications.



Brand:
Brands
Categories: , Tags: , , , ,

FEATURES

  • Conforms to ANSI/BHMA A156.5, Grade 1
  • cULus listed, 3 hr fire rating
  • 5-Year limited warranty
  • For doors at least 13⁄8″ (35 mm) thick
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • Deadbolt, 1⁄2 x 1″ (12.7 x 25.4 mm) with 1″ (25.4 mm) throw
  • Strike, dust-box, faceplate and mounting hardware included
  • Square or round cylinder collar with inside thumb-turn trim available, sold separately
  • Conventional or high-security mortise cylinder available, sold separately
  • Small Format Interchangeable Core (SFIC) housing mortise cylinder available (BEST® and CX5® cores sold separately)

FUNCTIONS

51Single cylinder, with thumbturn keyed function
55Thumbturn only
60Double cylinder
64Single cylinder only keyed function

Functions listed are available using separately ordered components – please contact for details.

FINISHES

15
SATIN NICKEL
19
MATTE BLACK
26D
SATIN CHROME

DMDBL strike and faceplate are 26D. Trims are available in 15, 19, or 26D.
Other finishes available by special order
Approximate finish simulation, for reference only

PARTS & ACCESSORIES


DM45X-PR

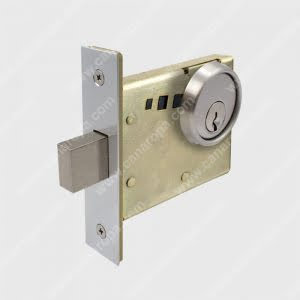

Mortise cylinder collar with spring; round

DM45X-PRS

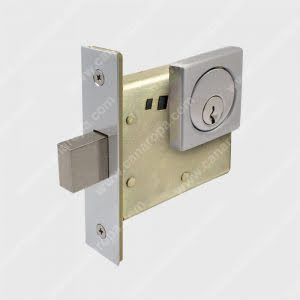

Mortise cylinder collar with spring; square

DM00X-PSCYL
1 1⁄8″ (28.6 mm) 5-pin (drilled 6) brass mortise cylinder

DM00X-PECYL
1 1⁄4 ” (31.8 mm) 5-pin (drilled 6) brass mortise cylinder


DM00X-PCAM
Replacement mortise cylinder cam, with screws

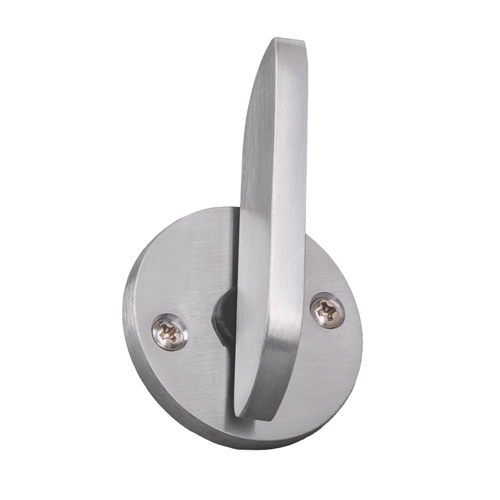

DM45X-PT
Mortise lock thumbturn; round. Mounting screws included

DM45X-PTS
Mortise lock thumbturn; square. Mounting screws included

DM00X-PPRVI
Privacy indicator kit, round

DM00X-PPRVIQ
Privacy indicator kit, square

DM00X-PPRVI-ECYL
Privacy indicator kit, round. Includes DM00X-PECYL cylinder

DM00X-PPRVIQ-ECYL
Privacy indicator kit, square. Includes DM00X-PECYL cylinder

DOCUMENTATION

Product Page

downloadDMDBL Series 01.074

Templates & Door Preparations

downloadDMDBL – Template
downloadDMDBL – HMD – Door Preparations
downloadDMDBL – WD – Door Preparations
