DX2 SERIES
GRADE 1

The DOREX DX2 is a series of premium, Grade 1, high performance, heavy-duty, narrow stile exit devices designed for simplicity, beauty, and strength. Ideal for high traffic and intense applications. Available in a wide variety of conventional and electronic configurations.



Brand:
Brands
Categories: , , , , Tags: , ,

FEATURES

  • Certfied to ANSI/BHMA A156.3 Grade 1
  • cULus listed, Panic Hardware
  • cULus listed, 3 hr Fire Exit Hardware
  • 5-Year limited warranty
  • 1-year limited warranty on electrified options
  • For wood or hollow metal doors 30-48″ (762-1219 mm) wide, 1 3⁄4″ to 2 1⁄4″ (45 to 57 mm) thick
  • Push-pad type, narrow stile
  • Configurable to meet any opening requirements including:> Rim model (RIM)
    » Surface vertical rod model (SVR)
    » Concealed vertical rod model (CVR)
    » Three point latching model (3PT)
  • Non-handed
  • Field sizable
  • Wide variety of exterior trims and accessories available
  • Wide variety of electrified models and trims available

Please consult the DX2 Focus Guide for more details.

MODELS

DX2PRRim, panic exit
DX2FRRim, fire exit

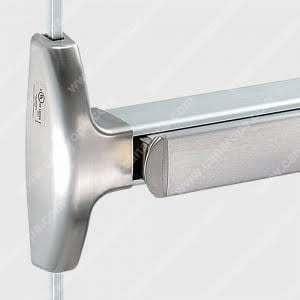

DX2PVSurface vertical rod, panic exit
DX2FVSurface vertical rod, fire exit

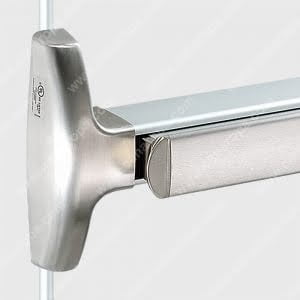

DX2PCConcealed vertical rod, panic exit
DX2FCConcealed vertical rod, fire exit

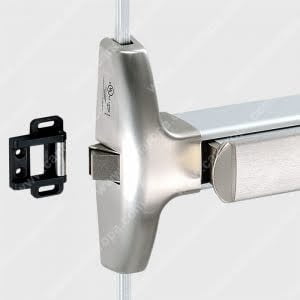

DX2PW3-point latch, panic exit
DX2FW3-point latch, fire exit

NOTE:  DX2 exit devices are completely configurable, with several different options, trims, and electrified functions – please consult the DX2 Focus Guide for more details.

FINISHES

630 (32D)
SATIN STAINLESS STEEL

NOTE: DX2 exit devices are available in a wide variety of finishes by special order and will require additional lead time and minimum order quantities – please consult the DX2 Focus Guide for more details.

Approximate finish simulation, for reference only

Trims


DX2TP
Thumb Piece


DX2TE
Escutcheon

NOTE: DX2 trims are cULus certified for ANSI/BHMA A156.3-2014 Grade 1 and 3-hour fire-exit hardware – see DX2 Focus Guide for product details.

Electrified Options

ELElectronic latch retraction
SSSignal Switch
ALAlarm Exit
RXRequest to exit
LMLatch monitoring
DEDelayed Egress

NOTE: DX2 exit devices are available with electrified options – please consult the DX2 Focus Guide for more details.

Documentation

Product Page

download02.100 Dorex DX2
downloadBHMA Products Guide

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
