<strong>F400T SERIES</strong>
<strong>F400T SERIES</strong> - Image 2

F400T SERIES

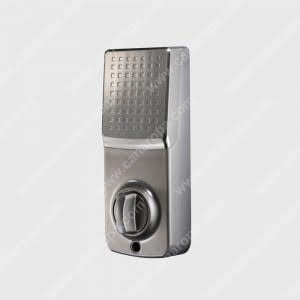

DOREX F400T electronic deadbolts are 3-in-1 locks that allow users to access an area using a physical key, access code or RFID token for maximum flexibility.

F400T deadbolts can replace any common deadbolt application, allowing an easy upgrade to RFID based access control.



Brand:
Brands
Categories: , , , , Brand:

FEATURES

  • Conforms to ANSI/BHMA A156.5, Grade 2
  • cULus listed, 2hr fire-rating
  • 3 Year limited mechanical warranty
  • 1 Year limited electronic warranty
  • For doors 13⁄8 to 2″ (35 to 51 mm) thick
  • Non-handed
  • Adjustable
  • 23⁄8″ or 23⁄4″ (60 mm or 70 mm) backset
  • Solid steel deadbolt with security pin, 1″ (25.4mm) throw
  • Steel cylinder housing
  • Fits standard door preparations for cylinder and/or tubular locks; no additional holes or wiring required
  • 5-pin (drilled 6) Schlage “C” brass cylinder (2 keys)
    » Other keying options, including CX5 high security, available
  • Digital touch keypad, blue LED back-light
  • RFID Protocol: MIFARETM 13.56 MHz (Classic 1K)
  • 2 RFID cards included

Electronic Features:

  • 50 individual user codes available
    » 25 programmable codes (4-8 digits)
    » 25 RFID tokens
  • RFID Protocol: MIFARETM 13.56 MHz (Classic / Desfire)
  • 4 renewable single use codes
  • Auto Lock with delay
  • Vacation Mode (disables keypad)
  • Optional random screen keypad activation
    code to prevent number probing
  • Double authorization mode (requiring user code + RFID token) for additional security
  • Easy to program and pair RFID keys

FUNCTIONS

51Single cylinder, thumb-turn keyed function

FINISHES

15
SATIN NICKEL
19
MATTE BLACK

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadF400T Series 01.400
downloadF400T Series

Installation Instructions

downloadF400T – Installation Instructions
downloadF400T – User Guide
downloadF400T – Quick Reference Guide

Troubleshooting Guide

downloadF400T – Troubleshooting Guide – Electronic (video)
downloadF400T – Troubleshooting Guide – Mechanical (video)
downloadF400T – Troubleshooting Guide (pdf)

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
