<strong>F500 SERIES</strong></br>GRADE 2
NEW
<strong>F500 SERIES</strong></br>GRADE 2 - Image 2

F500 SERIES
GRADE 2

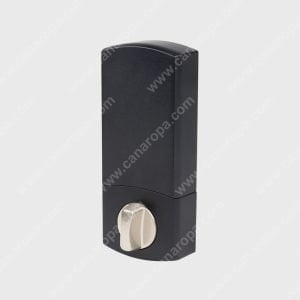

The DOREX F500 Smart Electronic Deadbolt is an easy-to-manage, easy-to-use, electromechanical door lock that can be locked or unlocked using a digital key, PIN code, or traditional physical key.

Enjoy the convenience of keyless entry, and advanced user control—all without the need for complicated smart home integration.



Brand:
Brands
Categories: , , , , Tag: Brand:

FEATURES

  • Conforms to ANSI/BHMA A156.5, Grade 2
  • cULus listed, 20 min. fire-rating
  • UL 1034, Safety for Burglary-Resistant Electric Locking Mechanisms
  • 3 Year limited mechanical warranty
  • 1 Year limited electronic warranty
  • For doors 13⁄8″ to 2″ (35 to 51 mm) thick
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 mm or 70 mm) backset
  • Solid steel deadbolt with security pin, 1″ (25.4mm) throw
  • Steel cylinder housing
  • Fits standard 21⁄8″ (54mm) or 11⁄2″ (38mm) door preparations; no additional holes or wiring required.
  • Integrated all-weather seal for outdoor use
  • 5-pin (drilled 6) Schlage “C” brass cylinder (2 keys)
  • Digital touch keypad, blue LED backlight
  • Requires 4 AA batteries (not included)

(*) Other keying options, including CX5 high security, available

Electronic Features:

  • iKey Connect mobile app control (IOS / Android)
  • 200 User credentials per lock
  • PIN codes can be single use, scheduled, or permanent
  • Optional keyless entry (geofencing)
  • Optional auto-lock with delay (900 sec. max.)
  • Optional random keypad activation code to prevent number probing
  • Fully encrypted communication (128 bit)
  • Vacation mode (disables keypad)
  • Audit trail (accessible via app)
  • Low battery power indicator (in-app / on-device)
  • Multi-lock management*

(*) Local touring, lock-to-phone.



FUNCTIONS

51Single cylinder, thumb-turn keyed function

FINISHES

15
SATIN NICKEL
19
MATTE BLACK

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadF500 Series 01.405
downloadF500 Flyer

Installation Instructions

downloadF500 – Installation Instructions
downloadF500 – User Guide

Troubleshooting Guide

downloadF500 – Troubleshooting Guide (pdf)

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.

VIDEOS

Instructional Videos

downloadF500 – Installation (video)
downloadF500 – Initial Setup (video)
downloadF500 – Access Management Basics (video)

Troubleshooting Guide

downloadF500 – Troubleshooting Guide – Electronic (video)
downloadF500 – Troubleshooting Guide – Mechanical (video)
