F SERIES
GRADE 2

DOREX F Series door locks (FC, FH, FS, FL) are designed for moderate to high traffic areas requiring exceptional durability and dependable security. The F Series is ideal for commercial areas such as office buildings, stores, multi-family residences and other mixed projects.



Brand:
Brands
Categories: , , , Tags: , ,

FEATURES

  • For moderate traffic applications
  • Certified to ANSI/BHMA A156.2, Series 4000, Grade 2
  • cULus listed, 3 hr fire rating
  • UL 10C Positive Pressure Rated
  • Meets ADA requirements
  • 10 Year limited warranty (NEW)
  • For doors 13⁄8 – 13⁄4″ (35 – 44.5 mm) thick
  • Non-handed
  • 2 3⁄4″ (70 mm) backset
  • 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Removable security posts
  • Functions with lever clutch release available
  • 35⁄16″ (84.5 mm) diameter tapered rose
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin cylinder, Schlage “C”  keyway with 2 keys

Full keying services available. Other common and high security keyways available.

LEVER STYLES

FC Lever Trim
FC Curved return

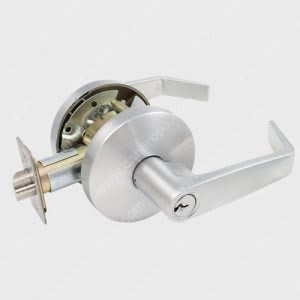

FH Lever Trim
FH Straight return

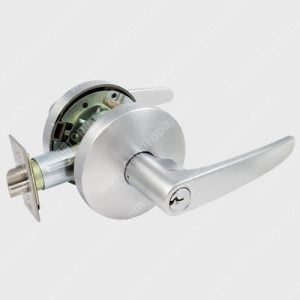

FS Lever Trim
FS Straight, no return

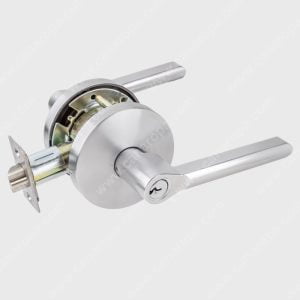

FL Linear, no return

FUNCTIONS

10Passage
15Exit
17Dummy, single
42Privacy
51Office keyed function
53Entrance* keyed function
53-OEntry, with clutch release keyed function
60Store keyed function
70Classroom keyed function
80Storeroom* keyed function
80-OStoreroom, with clutch release keyed function
82Institution / Utiliy keyed function

(*) Lever clutch release available (-O option)

FINISHES

C3
POLISHED BRASS
C26D
SATIN CHROME
C19
MATTE BLACK

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page

downloadF Series 01.020
downloadFC Series 01.020-1
downloadFH Series 01.020-2
downloadFS Series 01.020-3
downloadFL Series 01.020-4
downloadBHMA Products Guide

Installation Instructions

downloadFC/FH/FS – Installation Instructions (70 mm posts)
downloadFC/FH/FS – Installation Instructions (53, 80 function)
downloadFC/FH/FS – Installation Instructions (17 function)

Templates & Door Preparations

downloadFC/FH/FS ANSI-A156W Wood Door Preparation
downloadFC/FH/FS ANSI-A156 Door Preparation
