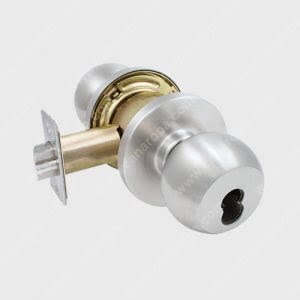

GX1B SERIES
GRADE 1

The DOREX GX1B classic door knob is designed for high traffic areas requiring a heavy-duty lockset with enhanced security features. The GX1B series is ideal for commercial areas such as office buildings, universities, industrial and institutional facilities.



Brand:
Brands
Categories: , , Tags: , , ,

FEATURES

  • Conforms to ANSI/BHMA A156.2, series 4000, Grade 1
  • cULus listed, 3 hr fire rating
  • ANSI/UL 10C Positive Pressure Rated
  • 10 Year limited warranty
  • For doors 13⁄8 to 2″ (35 to 51 mm) thick
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Deadlatch with 3⁄4″ (19 mm) throw available
  • Removable security posts
  • 3″ (76 mm) rose diameter
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin cylinder, Schlage “C” keyway with 2 keys
  • Small format interchangeable core (SFIC) model available (SFIC sold separately)

Full keying services available. Other common and high security keyways available.

FUNCTIONS

10Passage
42Privacy
53Entry keyed function
53ICEntry SFIC keyed function
60Store keyed function
60ICStore SFIC keyed function
70Classroom keyed function
70ICClassroom SFIC keyed function
80Storeroom keyed function
80ICStoreroom SFIC keyed function

FINISHES

C32D
SATIN STAINLESS STEEL

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadGX1B Series – 01.030

Installation Instructions

downloadGX1B – Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
