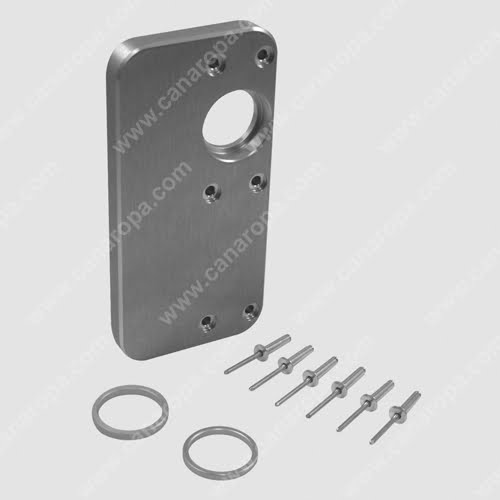

<strong>LPA45</strong> LATCH & CYLINDER PROTECTOR

LPA45 LATCH & CYLINDER PROTECTOR

Categories: ,

FEATURES

  • Solid 6061 aluminium plate
  • Handed
  • Attaches to metal door with 6 steel 3⁄16″ (4.8 mm) pop rivets (included)
  • For use on narrow style aluminium doors
  • Protects latch, cylinder and strike 11⁄32″ (8.7 mm) cylinder recess
  • Cylinder spacers included
  • LPA45C – for flush doors
  • LPA45D – for offset doors
  • LPA45E – for offset doors with electric strike
  • LPA45F – for offset doors with wide electric strike

DOCUMENTATION

Product Page

download05.430

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
