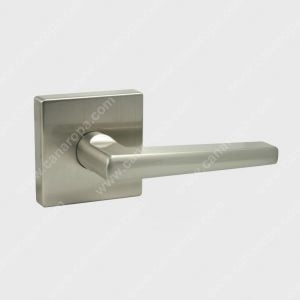

LINEA

Part of the Tecnica Design collection, this modern lever is ideal for residential and light-duty office applications.

Available with spring or magnetic tubular latches.

Brand:
Brands
Categories: , , Tag:

Features

  • 20 minute fire-rating available with listed fire-can*
  • Meets ADA requirements
  • For doors 13⁄8 to 13⁄4″ (35 to 44.5 mm) thick
  • Kit for doors 21⁄4″ (57 mm) thick available
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 or 70 mm) backset
  • Stainless steel spring latch, available Drive-In or Universal
  • Available with square or round rose
  • Privacy function with auto-release
  • Dummy includes surface and thru-bolt mounting hardware
  • Concealed mounting screws
  • Full lip strike with 1⁄4″ (6.4 mm) radius corners
  • Strike available for hollow metal frames

(*) Fire-can must be ordered in conjunction with lockset.

MAGNETIC LATCHES

NEW
Quick View

MAGNETIC LATCHES

Functions

10Passage
42Privacy

-5Dummy

FINISHES

C15
SATIN NICKEL
C19

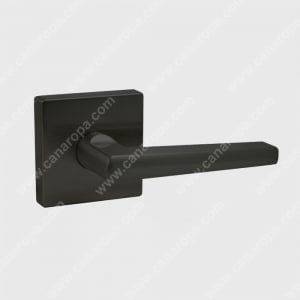

MATTE BLACK
C26
POLISHED CHROME
C26D
SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page
downloadTecnica Design – 01.240
downloadTecnica Design (Magnetic) – 01.241

Instructions
download100 Tecnica Design – Installation Instructions
downloadM6-100 Tecnica Design (Magentic) – Installation Instructions
download100-5 Tecnica Design – Installation Instructions, Dummy

Templates & Door Preparation
downloadResidential Door Preparation – 70 mm

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
