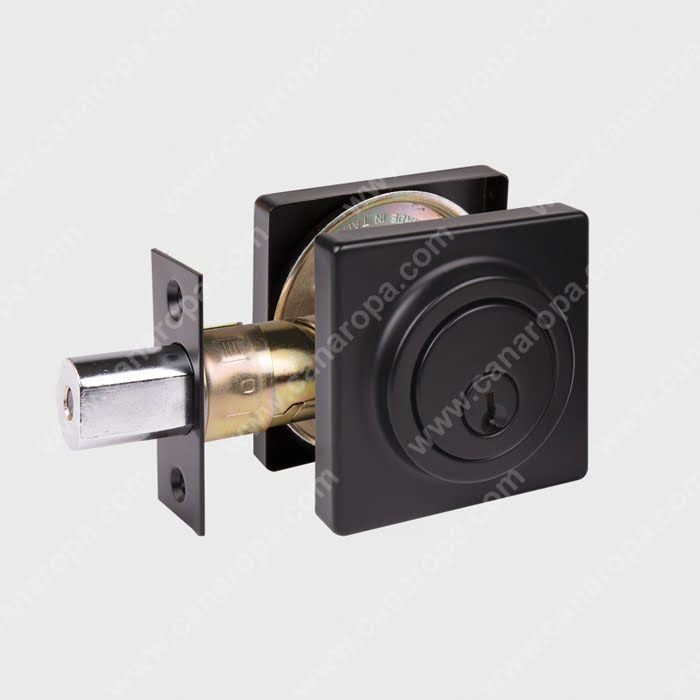

METRO SQUARE

Contemporary deadbolt lock styles for home and property security.

Brand:
Brands
Categories: , Brand: ,

FEATURES

  • 20 Minute fire-rating model available
  • 1 year mechanical warranty
  • 1 year limited finish warranty
  • For doors 13⁄8 – 13⁄4″ (35 – 44.5 mm) thick
  • Extension kit fire 21⁄4” (57mm) thick doors available (#B1-EXT)
  • Fits standard 21⁄8” (54mm) door preparation with 1″ (25.4mm) edge bore
  • Steel 1″ (25.4 mm) deadbolt latch with hardened steel security pin and adjustable
    23⁄8″ – 23⁄4″ (60 or 70 mm) backset
  • Mortise faceplate with square corners, convertible to drive-in
  • 5-pin cylinder, Weiser keyway with 2 keys
  • Strike for wood door frames included
  • 5-pin Schlage cylinder available
  • Other faceplate options available

Note: Only the Schlage model (V12) is available fire-rated (FM).

Functions

51Single cylinder with thumbturn keyed function

FINISHES

15
SATIN NICKEL
19
MATTE BLACK
26D
SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page
downloadMetro Collection – 01.240
downloadMetro (Deadbolts) – 01.248

Instructions

downloadMetro Series – Installation Instructions (Square)

Templates & Door Preparations

downloadMetro Series – Template
