PF210
GLASS DOOR LOCKSET (PASSAGE)

Categories: ,

FEATURES

  • Handed, field reversible*
  • Passage function
  • Made of high strength zinc casting alloy and stainless steel covers
  • For glass doors 3⁄8 – 1⁄2″ (10 –12.7 mm) thick
  • Latch bolt with 1⁄2″ (12 mm) throw
  • Different lever styles available (special order)
  • Patch fitting strike for wood or aluminum frame strike available (sold separately)
  • Mounting hardware and gaskets included

* Handing conversion is possible only from: Left hand to Right hand (vice versa). Left hand reverse to Right hand reverse (vice versa). See tab.

FINISHES

630
SATIN STAINLESS STEEL
19
MATTE BLACK
Other finishes available
Approximate finish simulation, for reference only

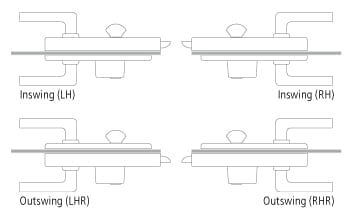

HANDING CONVERSION

DOCUMENTATION

Product Page

download01.500

Focus Catalogues

downloadGlass Door Hardware Guide
downloadGlass Door Configurations

Installation Instructions

downloadPF210 – Installation Instructions
downloadPF-INST-PADS – Adhesive pads – Installation Instructions

Door Preparation

downloadPF210 – Door Preparation (Pdf)
downloadPF210 – Door Preparation (AutoCAD)

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
