<strong>PLH901</strong> </br>STRIKE HOUSING
NEW

PLH901
STRIKE HOUSING

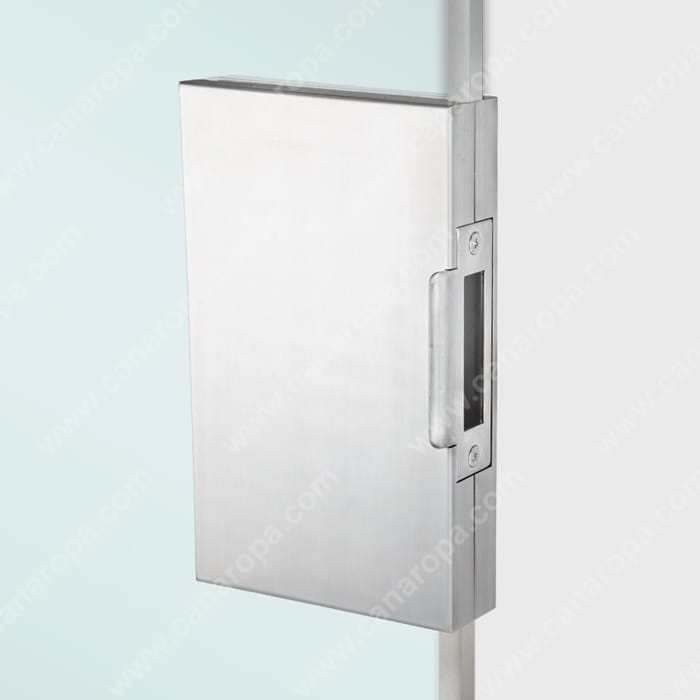

The DOREX PLH901 Universal Patch Strike Housing is designed to pair with the PLH900 lock housing. Installed on the glass sidelight, it provides the strike point for glass doors equipped with the PLH900 — ensuring perfect alignment, durability, and a clean, coordinated appearance.

Brand:
Brands
Categories: , Brand:

FEATURES

  • Universal Strike Compatibility
    The PLH901 accommodates multiple DOREX strike types for center mortise, cylindrical, and deadbolt locks. The PLH901ES also accommodates the SGT78 electric strike.
  • Modular & Future-Proof Design
    Like the PLH900, the PLH901 is built with modularity in mind. With a simple internal adjustment and new housing covers, the PLH901 can be reconfigured for different lock strike types, handing and glass thickness. No new housing required, just a new strike and covers.
  • Streamlined Specification
    Standardized glass preparation and interchangeable kits make the PLH901 easy to specify, stock, and install.
  • Retrofit-Friendly
    Designed for flexible installation in new or retrofit projects, with minimal modifications and no silicone adhesives. Can fit existing popular glass door preparations.

DETAILS

  • Universal patch housings for Dorex door lock strikes.
  • 1-year limited warranty (housing).
  • Must be paired with PLH900 Lock housing. For more details: PLH900.
  • For use on interior tempered glass panels/sidelights 10 to 12.7mm (3⁄8 to 1⁄2″) thick.
  • Solid aluminum housing with removable covers.
  • Housing can accommodate (with matching cover):
    – Door strikes for DOREX mortise, cylindrical, and deadbolt locksets.
    – SGT78 electric strike. (link to SGT78)
  • Strike housings are 6x10x13⁄4″ (152x254x44.5mm)
    – Housing projects 7⁄8″ (22.2mm) off from the glass
  • Common glass cut; housings can fit panels prepared for other popular glass center locks and strikes.(1)
  • Housings installed using concealed mounting hardware.
  • Kit includes housing, two (2) covers, brackets, gaskets, and mounting hardware.
  • Dorex door lock strikes and SGT78 electric strike sold separately. 

(1) When using included brackets – see installation instructions for details.

MODELS

MODEL

DESCRIPTION

COMPATIBLE PRODUCTS

PLH901 MS

Patch strike housing, mortise lock strike

Indicate handing, covers are not reversible.

DOREX DM strikes (all functions)

PLH901 CS

Patch strike housing, cylindrical lock strike

Indicate handing, covers are not reversible.

Standard ASA strike

PLH901 DS

Patch strike housing, deadbolt lock strike

Non-handed, covers are reversible.

Deadbolt strike; 1 1⁄8 x 2 3⁄4 in (29 x 70mm)

PLH901 ES

Patch strike housing, SGT78 electric strike

Indicate handing, covers are not reversible.

SGT78 Electric Strike

HOW TO ORDER

PLH

901

MS

R

-

630

SERIES

TYPE

COVER

HAND*

FINISH


901 Strike housing

MS Mortise strike

CS Cylindrical strike

ES Electric strike**

R Right (RH or LHR)

L Left (LH or RHR)

630 Satin stainless steel

630 Matte black

SS15P Satin steel, anti-fingerprint

DS Deadbolt strike

Not required

(*) For LH doors – order LH strike. For RH doors – order RH strike. For LHR doors – order RH strike. For RHR doors – order LH strike. (**) SGT78 ONLY

COVERS

Looking for replacement covers? Due to the large number of variations – please contact your local Canaropa or Dorex representative.

FINISHES

630
SATIN STAINLESS STEEL
693
MATTE BLACK
SS15P
SATIN STEEL WITH ANTI-FINGERPRINT COATING*

*Coating affects appearance of the finish; resembles satin nickel.

Other finishes available
Approximate finish simulation, for reference only
