RW SERIES
GRADE 2

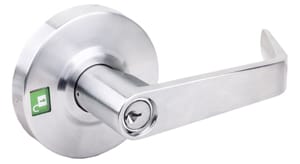

The DOREX RW cylindrical door lock offers a durable, hassle-free operation for light to medium traffic applications. Includes a full-sized, 3 3/8in (86mm), low profile rose for a more streamlined look and is priced to provide value.



Categories: , , Tags: , ,

FEATURES

  • For light to moderate traffic applications
  • Conforms to ANSI/BHMA A156.2, Series 4000, Grade 2
  • cULus listed, 3 hr fire rating
  • UL 10C Positive Pressure Rated
  • Meets ADA requirements
  • 1 Year limited warranty
  • For doors 13⁄8– 13⁄4″ (35 – 44.5 mm) thick
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″ (60 mm) backset available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Removable security posts
  • 33⁄8″ (86 mm) diameter low profile rose
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin Schlage “C” cylinder with 2 keys

Full keying services available. Other common and high security keyways available.

FUNCTIONS

10Passage
17Dummy, single
42Privacy
53Entrance* keyed function
70Classroom keyed function
80Storeroom* keyed function

FINISHES

26D
SATIN CHROME

DOCUMENTATION

Product Page

downloadRW Series 01.023

Installation Instructions

downloadRW Series – Installation Instructions
downloadRW Series (Dummy) – Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
