SA-300

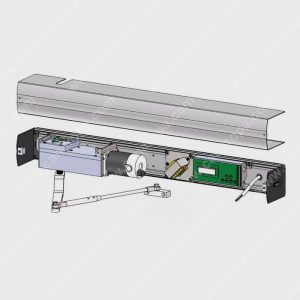

Introducing the SA-300, a state-of-the-art Low Energy Door Operator designed and built in Canada. Engineered to enhance accessibility in buildings and areas where ease of entry is essential for individuals with disabilities or those carrying heavy items – such as healthcare facilities, retail stores, libraries, commercial buildings, and multi-unit residential buildings.

The SA-300 can replace existing manual door closers or retrofit a plain swinging door, converting openings into automated ones easily while still being manually opened with ease. Thanks to its integrated logic board, the SA-300 is also an all-in-one solution, allowing it to easily interface with and even power access control devices, buttons, sensors, and electric strikes to create simple and complex configurations for variety of applications. It can even integrate with existing fire-alarm and security systems.



Brand:
Brands
Categories: , , , ,

FEATURES

  • Conforms to ANSI/BHMA A156.19 for low energy door operators
  • Conforms to UL Std. 325, 228, 10C (3hr Fire Rating)
  • Conforms to CSA Std.C22.2 #247
  • ADA Compliant
  • Commercial low energy automatic swing door operator with integrated logic board
  • For interior or exterior swing doors
  • Field reversible
  • 120° maximum door opening
  • Mechanical door stop (80° to 180°)
  • Maximum reveal: 12 in (30.5 cm) for push applications,  6 in (15.2cm) for pull applications
  • Recommended maximum weight of 480 lbs (218 kg) per door leaf
  • Recommended maximum width of 48 in (122 cm) per door leaf
  • Operates as mechanical door closer during power failures

Electronic Features:

  • One-button, self-learning, and programming setup
  • Interfaces with access control devices, buttons, electric strikes, and fire-alarms
  • Interfaces with all major sensors, including BEA LZR and Optex Elite Pro
  • Power Assist (Push&Go) for automatic door opening when pushed
  • Wind Force Dampening (Wind-Brake) to counteract wind forces
  • Pressure Compensation to counteract positive, negative, and sudden pressure changes for smooth operation
  • Latch Check to ensure proper door closing, operator will open and attempt to close the door multiple times
  • Built-in encoders track door position, even after a power failure
  • Built-in obstacle detection, expandible with sensors (sold separately)
  • Programmable sweep and latching speeds
  • Programmable cushioning backcheck
  • Programmable delayed action

MODELS

SA-300 : Surface mounted header, single operator with push or pull arm kit

(*) Other models and configurations available by special order – please contact for details.

PARTS

SA-PS-628
PUSH ARM ASSEMBLY

SA-PL-628
PULL ARM ASSEMBLY

Finishes

628
ANODIZED ALUMINUM

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadSA-300 (Flyer)

Installation Instructions

downloadSA-300 – Installation Instructions

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
