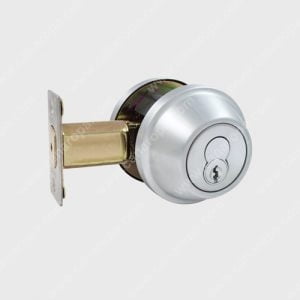

The DOREX TLA is a versatile heavy duty, Grade 2 quality, fire-rated, commercial deadbolts for moderate commercial and heavy-duty residential traffic applications.
- Conforms to ANSI/BHMA A156.5, Grade 2
- cULus listed, 3 hour fire-rating*
- 5 Year limited warranty
- For doors 13⁄8″ to 13⁄4″ (35 to 44.5 mm) thick
- Kit available for doors 21⁄4″ (57 mm) thick
- Non-handed
- 23⁄4″ (70 mm) backset
- 23⁄8″ and 5″ (60 mm and 127 mm) backsets available
- Adjustable 23⁄8″ or 23⁄4″ (60 mm or 70 mm) backset available
- Solid brass deadbolt with security pin, 1″ (25.4 mm) throw
- Free-spinning cylinder collar and steel security shield for enhanced protection from physical attacks
- Fits 11⁄2 –21⁄8″ (38–54 mm) door preparations1
- Strike and dust-box
- 6-pin cylinder in steel housing, Schlage “C” keyway with 2 keys
- Small format interchangeable core (SFIC) model available (BEST-F® and CX5® cores sold separately)
- Privacy model with exterior indicator available
Full keying services available. Other common and high security keyways available.
(*)Except for privacy model.
(1) 11⁄2” (38mm) installation will negate Grade 2 conformity, but will retain fire-rating.
