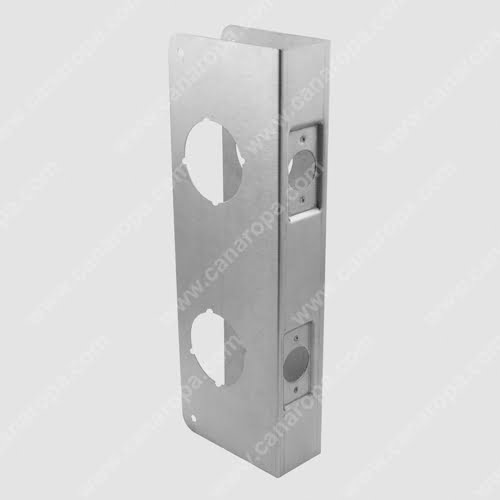

<strong>WDC12</strong> WRAP AROUND PLATES

WDC12 WRAP AROUND PLATES

Categories: ,

FEATURES

  • For cylindrical locks 2 1⁄8″ (54 mm) hole
  • For 1 3⁄4″ (45 mm) door thickness
  • Material: 22 gauge stainless steel
  • Latch faceplate recess fits: 1 1⁄8″ x 2 1⁄4″ (28.5 x 57 mm)
  • Mounting screws included

DOCUMENTATION

Product Page

download05.640

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
