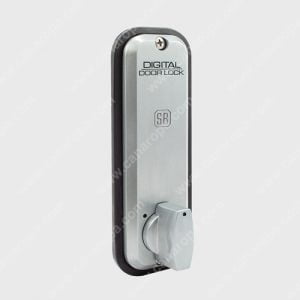

DDL 2200 SERIES

Fully mechanical, push-button combination deadbolt lock for use on moderate traffic commercial or residential applications.

Categories: ,

FEATURES

  • The original DDL, made in Japan
  • 1 Year limited warranty
  • For interior doors 13⁄8 to 2″ (35 to 51 mm) thick
  • Kit available for doors 21⁄4″ (57 mm) thick
  • Reversible
  • 23⁄4″ (70 mm) backset
  • 23⁄8″ (60 mm) backset available
  • Brass deadbolt with security pin, 1″ (25.4 mm) throw
  • Stainless steel deadlatch with 1⁄2″ (12.7 mm) throw available
  • Fully mechanical, no batteries
  • Stainless steel push-buttons
  • Easy combination changes
  • Override key available
  • Zinc-alloy case with rubber escutcheon
  • Fits 21⁄8″ (54 mm) door bore with available trim plate
  • Surface mounted model available

Recommended for interior use only

Models

2200 Deadbolt model, surface mounted, 11⁄8″ (28 mm) backset
2212 Deadbolt model
2212K Deadbolt model with override key
2230 Deadlatch model

FINISHES

AB
ANTIQUE BRASS
PB
POLISHED BRASS
SC
SATIN CHROME
SN
SATIN NICKEL

Other finishes available
Approximate finish simulation, for reference only

Documentation

Product Page

downloadDDL 2200 Series – 01.422

Installation Instructions

download2200 – Installation instructions
download2212 – Installation instructions
download2230 – Installation instructions
downloadDDL – Changing the code

Templates

downloadDDL2200-2210 60MM – Template
downloadDDL2200-2210 70MM – Template
downloadDDL2230-2235 60MM – Template
downloadDDL2230-2235 70MM – Template
downloadDDL2212 – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
