ER SERIES

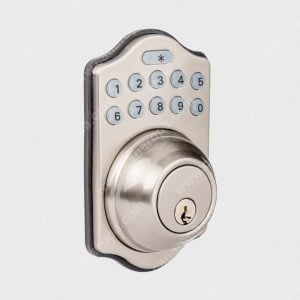

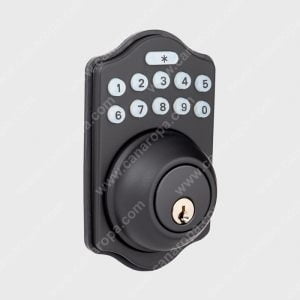

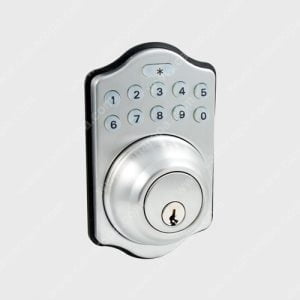

Electronic programmable keypad deadbolt lock for residential or commercial applications.



Categories: , , , ,

FEATURES

  • Operated by keypad, override key or remote control
  • For doors 13⁄8 – 2″ (35-51 mm) thick
  • Non-handed
  • Adjustable 23⁄8″ or 23⁄4″ (60 mm or 70 mm) backset
  • Steel deadbolt with security pin, 1″ (25.4 mm) throw
  • Fully programmable from keypad, no computer required
  • Programmable access for up to 6 users (4 to 10 digit access codes)
  • Visual and audio confirmation
  • Optional auto-locking function for improved security
  • Incomplete door locking detection
  • All settings saved in memory, even when battery is drained
  • LED illuminated keypad
  • Battery operated with low battery indicator (batteries not included)
  • Includes remote control key fob (battery included)
  • 5-pin cylinder in steel housing, Weiser keyway with 2 keys

Full keying services available. Other common keyways available.

FINISHES

15
SATIN NICKEL
15A
ANTIQUE NICKEL
19
MATTE BLACK
26D
SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

downloadER Series – 01.410

Installation Instructions

downloadER Series – Installation instructions
downloadER Series – Remote control instructions
