IL SERIES
GRADE 2

The DOREX IL series interconnected cylindrical lockset is recommended for use in multi-unit residential or commercial applications. Simultaneous retraction of both latch and deadbolt provides panic-proof exiting.



Brand:
Brands
Categories: , Tag:

FEATURES

  • Conforms to ANSI/BHMA A156.12, Grade 2
  • cULus listed, 3 hour fire-rating
  • UL10C Positive Pressure Rating
  • Meets ADA requirements
  • 1 Year limited warranty
  • For doors 13⁄8– 13⁄4″ (35 – 44.5 mm) thick
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″ (60 mm) backset available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Solid brass deadbolt with security pin, 1″ (25.4 mm) throw
  • Free-spinning cylinder collar for enhanced security
  • Single action egress
  • Interior escutcheon included (square or round)
  • 4″ (102 mm) centre-to-centre installation
  • Single or double locking function with 6-pin cylinder, Schlage “C” with 2 keys
  • Other lever styles available by special order
  • Exterior escutcheon available, sold separately

Full keying services available. Other common and high security keyways available.

FUNCTIONS

10Passage, single locking keyed function
80Storeroom, double locking keyed function

FINISHES

C15
SATIN NICKEL

Other finishes available
Approximate finish simulation, for reference only

Lever Styles

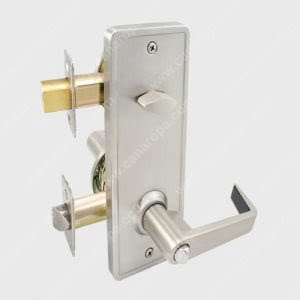

EM Lever
EM Standard return

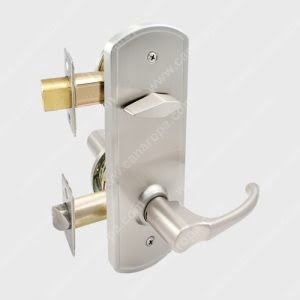

Verona LeverV Verona*

Verona and other lever styles available by special order.

Documentation

Product Page

downloadIL Series 01.040

Installation Instructions

downloadIL10/80 – Installation Instructions

Templates & Door Preparations

downloadIL10/80 – Template

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
