<strong>PLH900</strong> </br>LOCK HOUSING
NEW

PLH900
LOCK HOUSING

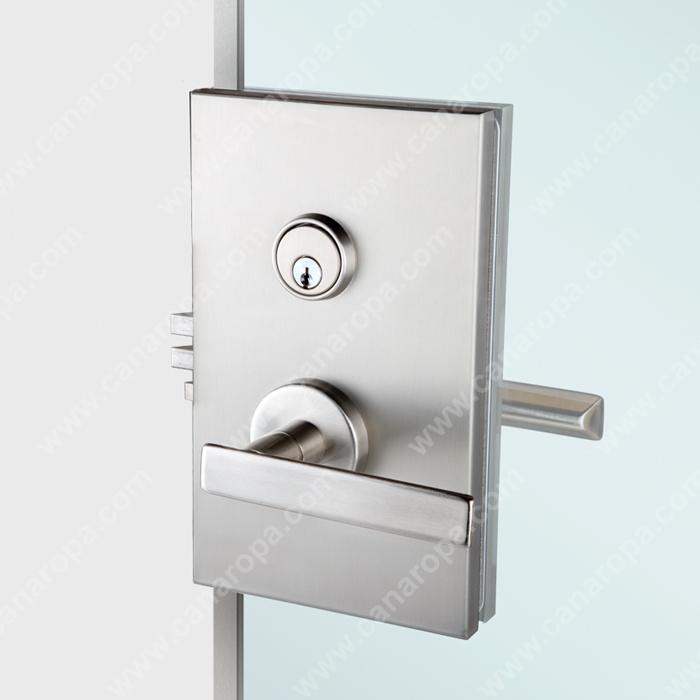

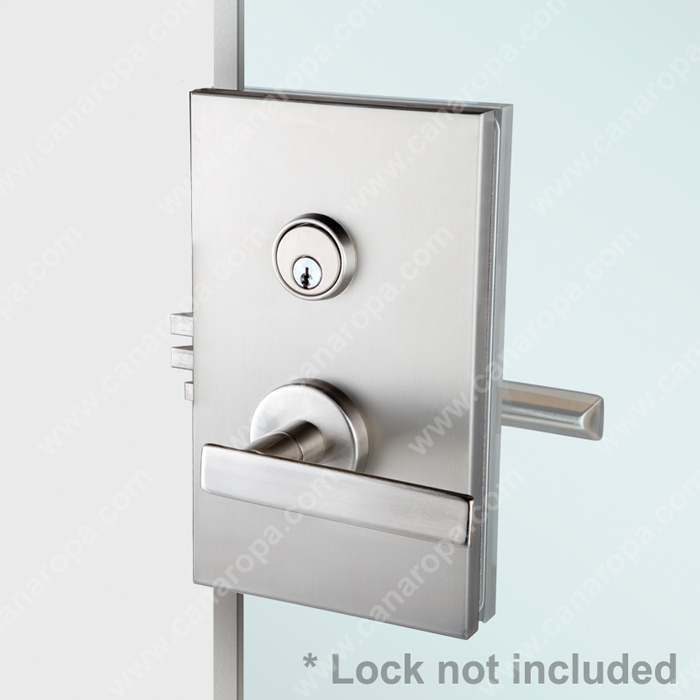

The DOREX PLH900 Universal Patch Lock Housing is a modular solution for glass doors, compatible with center mortise, cylindrical, and electronic locks. Designed for performance, easy installation, and updatable appearance & functions across glass applications.

Brand:
Brands
Categories: , Brand:

FEATURES

  • Universal Lock Compatibility
    PLH900 Accommodates multiple DOREX lock types — center mortise, cylindrical and deadbolt. The PLH901ES also accommodates the SGT78 electric strike.
  • Modular & Future-Proof Design
    The PLH900 is built with modularity in mind. With a simple internal adjustment and new housing covers, the PLH900 can be reconfigured for different lock types, handing and glass thickness. No new housing required, just a new lock and covers
  • Streamlined Specification
    Standardized glass preparation and interchangeable kits make the PLH900 easy to specify, stock, and install.
  • Retrofit-Friendly
    Designed for flexible installation in new or retrofit projects with minimal modifications and no silicone adhesives. Can fit existing popular glass door preparations.

DETAILS

  • Universal patch housing for Dorex door locks.
  • 1-year limited warranty (housing).
  • For use on interior tempered glass panels 10 to 12.7mm (3⁄8 to 1⁄2″) thick.
  • Solid aluminum housing with removable covers.
  • Housing can accommodate (with matching cover):
    – Dorex DM series mortise locks.
    – Dorex cylindrical locks and deadbolts using a 21⁄8″ (54mm) diameter cross bore door preparation
    – and a 23⁄4″ (70mm) backset.
  • Lock housing is 6x10x13⁄4″ (152x254x44.5mm)
  • Housing projects 7⁄8″ (22.2mm) off from the glass
  • Common glass cut; housings can fit panels prepared for other popular glass center locks and strikes.(1)
  • PLH900 Lock housing can be used with standard wooden, hollow metal, and aluminum door frames with appropriate strike.
  • PLH901 Strike housing available for glass sidelights or glass curtainwall installations. For more details:  PLH901
  • Housings are installed using concealed mounting hardware.
  • Each set includes two (2) housing halves, two (2) covers, brackets, gaskets, and mounting hardware.
  • Dorex door locks sold separately. 

  (1) When using included brackets – see installation instructions for details.

MODELS

MODEL

DESCRIPTION

COMPATIBLE PRODUCTS

PLH900 DM

Patch lock housing, DM mortise lockset

Indicate handing, trim type, and lock function. Covers are not reversible.

DOREX DM (all functions) (1)

PLH900 CL

Patch lock housing, cylindrical lockset

Non-handed, covers are reversible.

DOREX F1, GX1, F, T2, RW, CW, EM, TL

PLH900 DB

Patch lock housing, deadbolt lockset

Non-handed, covers are reversible.

DOREX GX1A, TLA, FHA, DG1, DG2, F500

(1) WHEN PAIRED WITH PLH901ES AND/OR SGT78 ELECTRIC STRIKE, THE NUMBER OF AVAILABLE FUNCTIONS IS LIMITED TO NON-DEADBOLT FUNCTIONS.

HOW TO ORDER

PLH

900

DM

45

R

S

-

630

SERIES

TYPE

LOCK TYPE

FUNCTION*

HAND*

TRIM*

FINISH


900 Lock housing


DM Mortise lock

Only required when ordering the PLH900DM

R Right

L Left

E Escutcheon

S Sectional

Only required when ordering the PLH900DM

630 Satin stainless steel

630 Matte black

SS15P Satin steel, anti-fingerprint

CL Cylindrical lock

Not required

Not required

Not required

DB Deadbolt lock

Not required

Not required

Not required

(*) Only required when ordering the PLH900DM. Housings only accomodate E (standard) and E2 (wide) escutcheons – the E3 will not fit.

COVERS

Looking for replacement covers? Due to the large number of variations – please contact your local Canaropa or Dorex representative.

FINISHES

630
SATIN STAINLESS STEEL
693
MATTE BLACK
SS15P
SATIN STEEL WITH ANTI-FINGERPRINT COATING*

*Coating affects appearance of the finish; resembles satin nickel.

Other finishes available
Approximate finish simulation, for reference only

Video

Instructions (Video)

downloadPLH900 – Installation Overview
downloadPLH900 – Aperçu de l’installation

DOCUMENTATION

Product Page (Flyer)

download01.520 – Flyer

Instructions

downloadPLH900CL Cylindrical Lock – Instructions
downloadPLH900DB Deadbolts – Instructions
downloadPLH900DM DM Lock – Instructions
downloadPLH901 Strike Housing – Instructions

Door Preparations

downloadPLH900-901 Electric Strike – Door Preparation (pdf)
downloadPLH900-901 Electric Strike – Door Preparation (AutoCAD)
downloadPLH900-901 Regular – Door Preparation (pdf)
downloadPLH900-901 Regular – Door Preparation (AutoCAD)

Disclaimer
  • We recommend that physical hardware be ordered and verified before starting any preparation, manufacturing or installation work.
  • All product installations must be done by qualified personnel using the proper mounting hardware for the appropriate surface or material.
  • We recommend that installers and manufacturers use the instructions inside the packaging provided by the manufacturer, as the manufacturer reserves the right to make technical changes, modify product or information without prior notice.
  • Do not exceed the maximum weight or dimensions recommended by the manufacturer.
  • All technical documents, drawings and instructions are provided as-is. Customers (primary or secondary) cannot derive any claim based on the use of these documents. No responsibility is or will be assumed.
