FEATURES

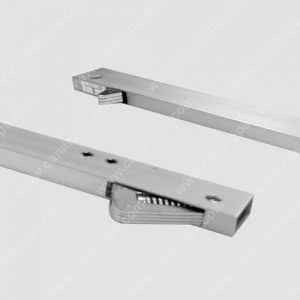

- UL listed fire door coordinator
- Metal construction with aluminum housing
- Non handed, automatic coordinating device for sequential closing of paired doors with astragal
- Coordinator allows inactive door to close before the active door
- Active door holding lever with adjustable tension
- Mounting hardware included: machine screws
Available housing lengths:
- 32” (813 mm) for door openings 34” to 52” (864 mm to 1320 mm) or pair of 24” (610 mm) doors
- 42” (1067 mm) for door openings 52” to 72” (1320 mm to 1829 mm) or pair of 30” (762 mm) doors
- 52” (1320 mm) for door openings 62” to 92” (1575 mm to 2337 mm) or pair of 36” (914 mm) doors
- 60” (1524 mm) for door openings 70” to 108” (1778 mm to 2743 mm) or pair of 42” (1067 mm) doors
Optional filler bars
(sold separately):
(sold separately):
#DCFB18, Aluminum tube 5⁄8″ x 1 5⁄8″ x 18”
(16 mm x 41 mm x 457 mm)
#DCFB32, Aluminum tube 5⁄8″ x 1 5⁄8″ x 32”
(16 mm x 41 mm x 813 mm)
#DCFB42, Aluminum tube 5⁄8″ x 1 5⁄8″ x 42”
(16 mm x 41 mm x 1067 mm)
Optional mounting brackets and screws
(sold separately):
(sold separately):
#DCMB4250, for a door stop height of 5⁄8″
(16 mm) and a minimum door stop width of 2 1⁄2″
(64 mm)
#DCMB4750, for a door stop height of 5⁄8″
(16 mm) and a door stop width of 7⁄8″ (22 mm) up to 2 1⁄4″ (57 mm)
