T2 SERIES
GRADE 2

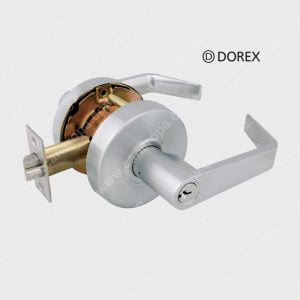

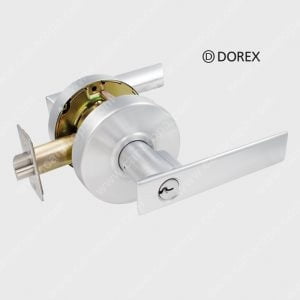

The DOREX T2 series of cylindrical door locks offer durable construction and architectural style. Featuring The Flat lever (T2F) from the Tecnica Design collation and an all-new classic return lever (T2H), they are ideal for moderate to high traffic applications. These capable Grade 2 levers can even accommodate doors up to 2″ (51mm) right out of the box



Brand:
Brands
Categories: , , , Tags: , ,

FEATURES

  • For moderate to high traffic applications
  • Conforms to ANSI/BHMA A156.2, Series 4000, Grade 2
  • cULus listed, 3 hr fire rating
  • UL 10C Positive Pressure Rated
  • Meets ADA requirements
  • 10 Year limited warranty (NEW)
  • For doors 13⁄8 – 2″ (35 – 51 mm) thick
  • Built tough for enhanced security and durability
  • Non-handed
  • 23⁄4″ (70 mm) backset
  • 23⁄8″, 33⁄4″ and 5″ (60 mm, 95 mm and 127 mm) backsets available
  • Stainless steel latch with 1⁄2″ (12.7 mm) throw
  • Deadlatch with 3⁄4″(19 mm) throw available (NEW)
  • Removable security posts
  • Functions with lever clutch release available
  • Functions with lever clutch release available
  • 35⁄16″ (84.5 mm) rose diameter
  • Concealed mounting plate and screws
  • ASA strike
  • Keyed functions include 6-pin cylinder, Schlage “C” keyway with 2 keys
  • Improved storeroom function with anti-breach feature for extra security

Full keying services available. Other common and high security keyways available.

FUNCTIONS

00Dummy, single
10Passage
40Privacy
53Entrance keyed function
70Classroom keyed function
80Storeroom keyed function

FINISHES

15
SATIN NICKEL
19
MATTE BLACK
26D
SATIN CHROME

Other finishes available
Approximate finish simulation, for reference only

DOCUMENTATION

Product Page

T2 Series 01.021
T2F Series N01021-1
T2H Series N01021-2

Installation instruction

T2 – Installation Instructions
T2-EXLR – Installation Instructions
T2-EV79-00 – Installation Instructions – Dummy lever

Templates & Door Preparations

downloadT2 ANSI-A156W Wood Door Preparation
downloadT2 ANSI-A156 Door Preparation
